Factory Price 10W 300-350lm Zoomable LED Shapeable Commercial Track Lighting

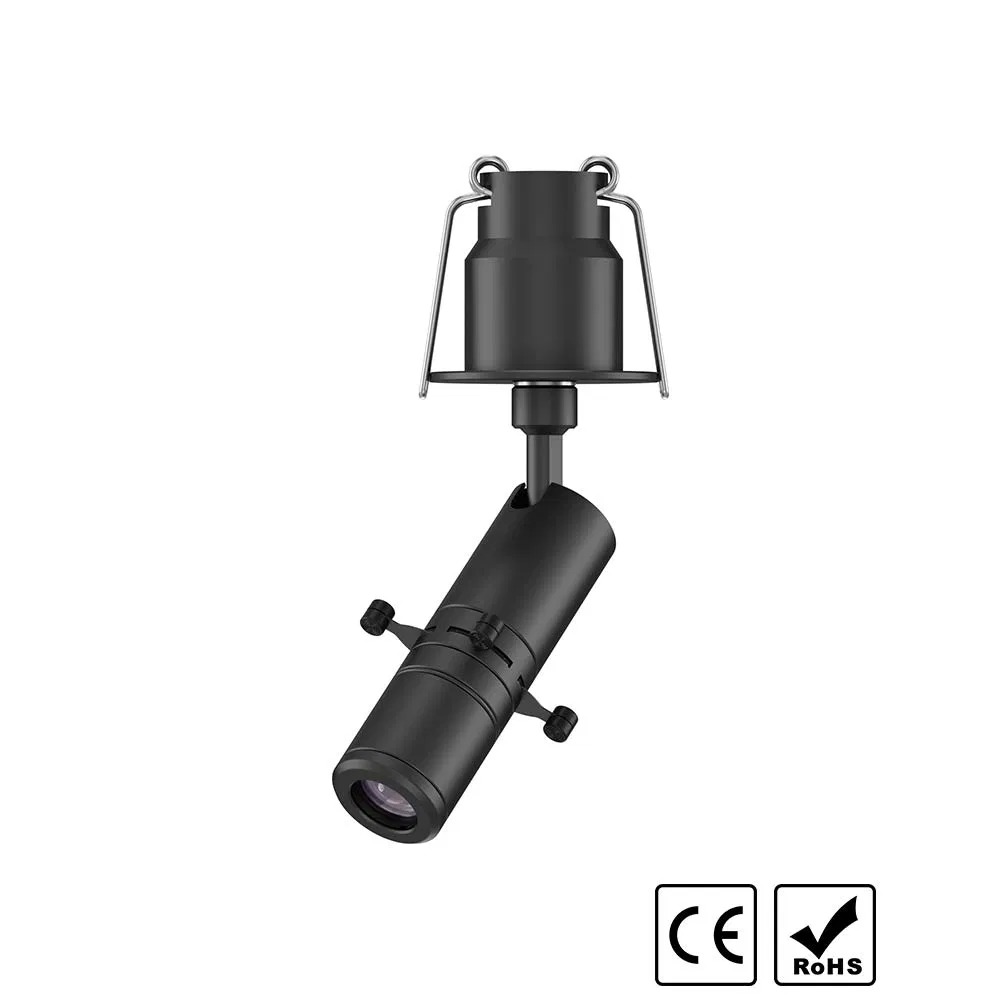

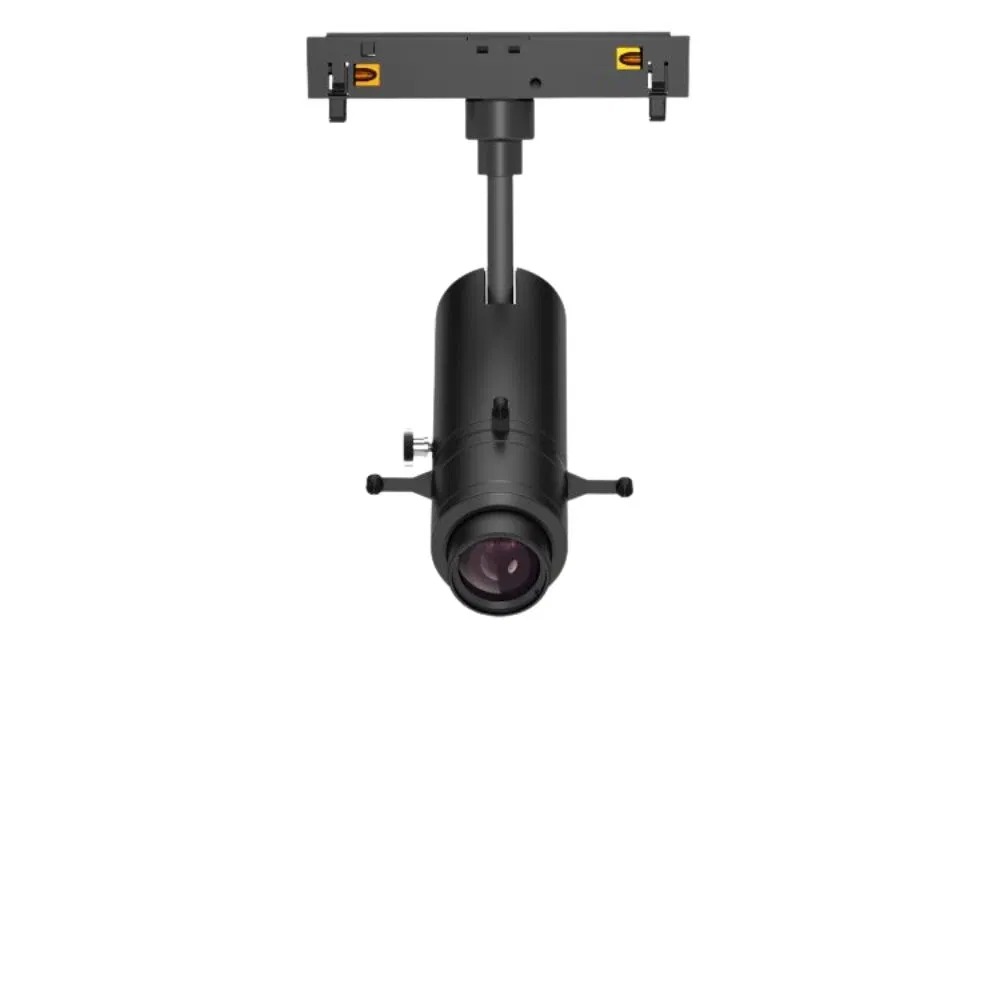

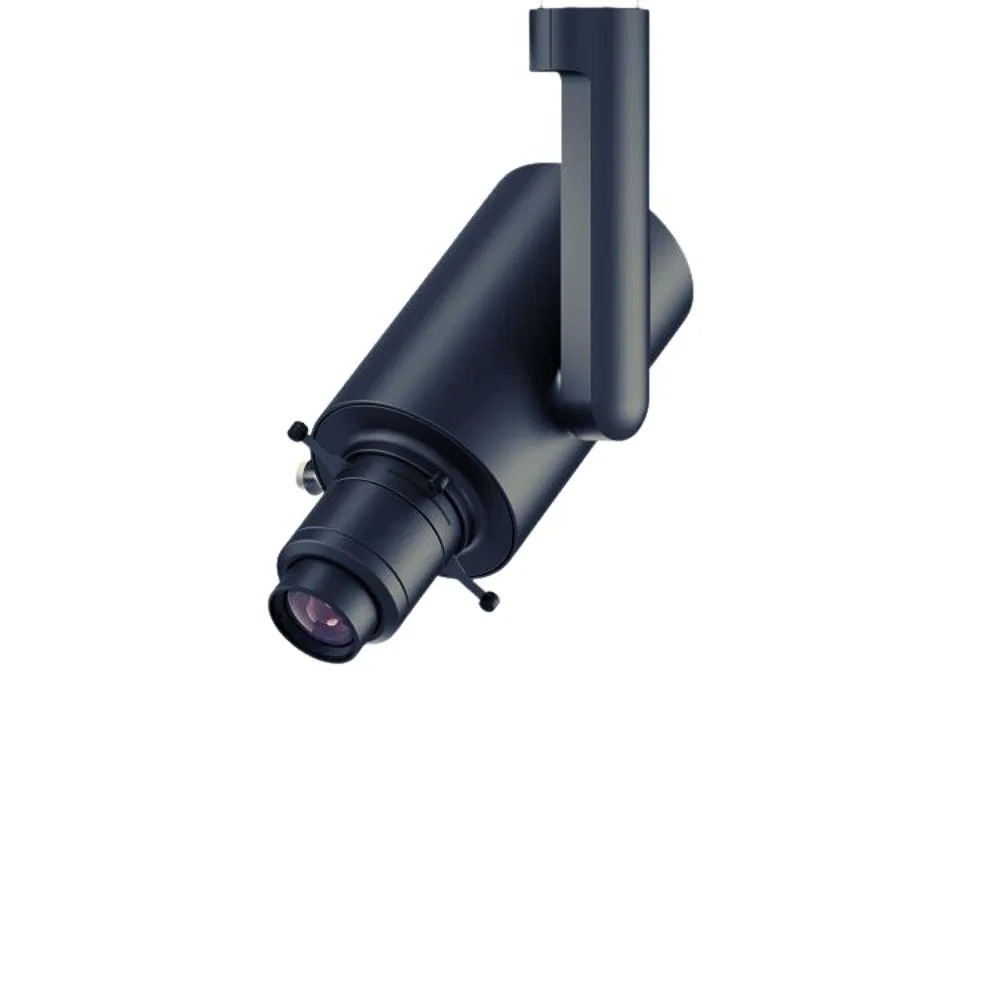

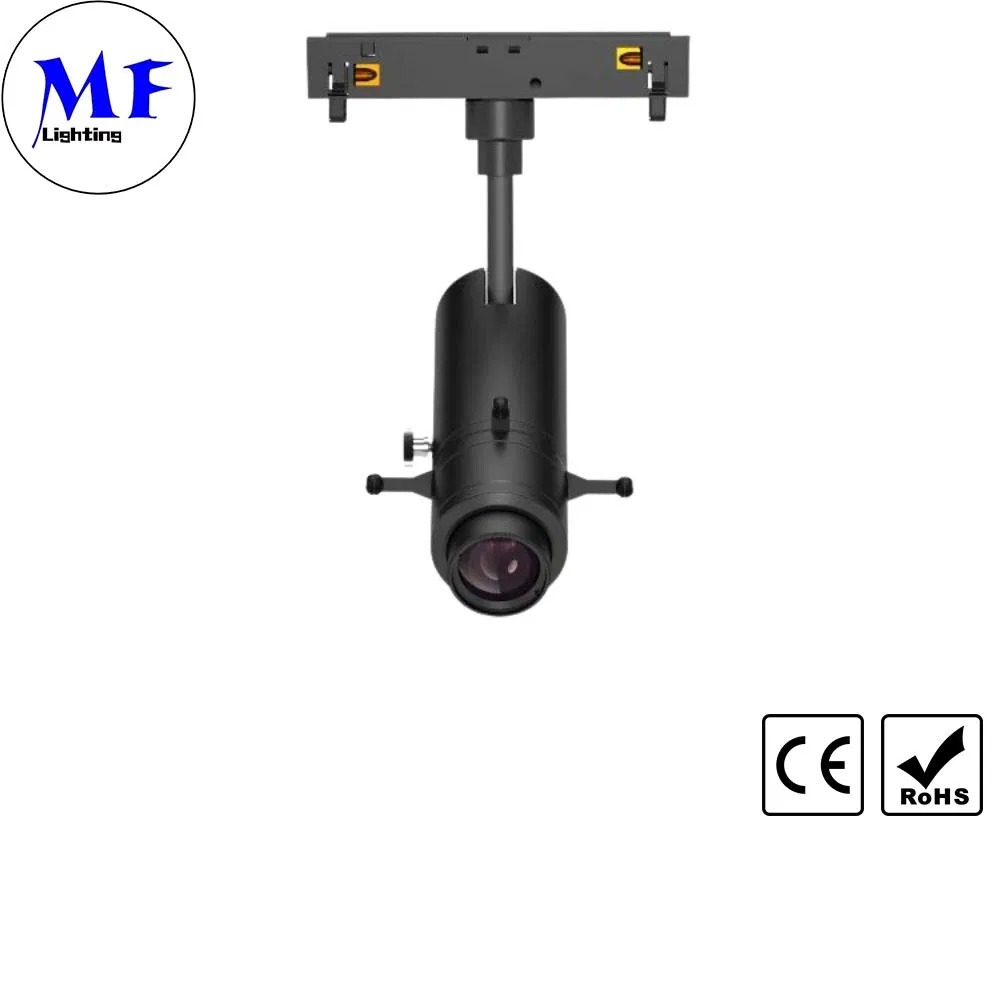

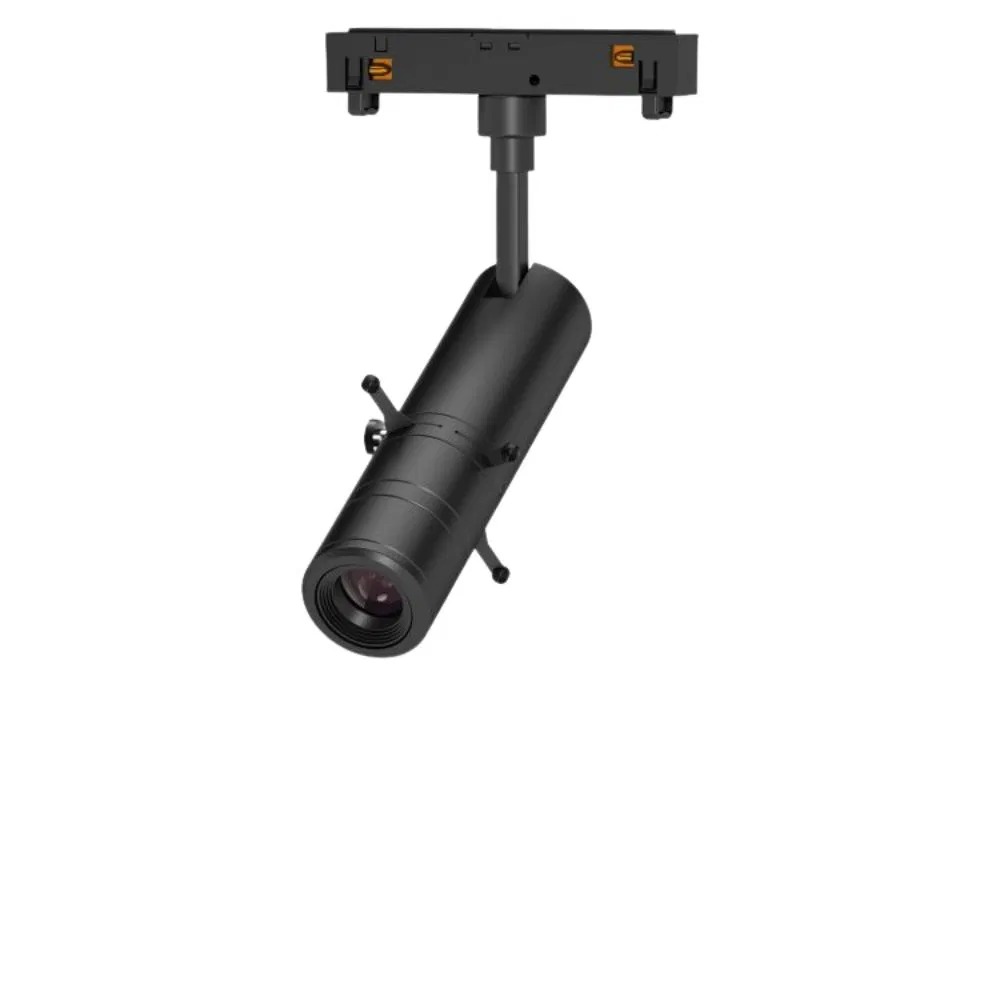

The T1003K-3836B is a 10W LED contour spotlight from Kingfisher 2 series featuring a 15°-36° zoom lens for ultra-high-definition projection with ≤0.6% TV distortion. It delivers 300-350LM output with Ra≥97 color accuracy and supports 2700K/3000K/4000K CCT options. The compact magnetic design (Ø38mm radiator, 0.36Kg) enables 90° vertical and 355° horizontal rotation for precise positioning. Compatible with smart controls (DALI, Zigbee, Bluetooth), it's ideal for museums, retail displays, and architectural lighting, offering millimeter-level spot shaping with 11-lens optics for uniform illumination. The anti-glare design (UGR<19) ensures comfortable viewing in premium commercial applications.
| Item no. | T1003K - 3836B |
| Power | 10W |
| Luminous Flux (3000K) | 300-350LM |
| Beam Angle (Lens Model) | Zoom 15-36° (3836B) |
| Ra | 97 |
| Color of housing | Black, White |
| Dimension (mm) | ¢38*H178.5 (¢38 lens) |
| Track type | 4 wires |
Key Features
• Variable Zoom Optics (15°-36°) - Adjustable beam angle provides versatile lighting control from spot to flood
• High-Precision Projection (≤0.6% Distortion) - Ultra-sharp imaging with minimal distortion for detailed projections
• Professional Color Rendering (Ra≥97) - Exceptional color accuracy for true-to-life illumination
• Smart Lighting Compatibility - Seamless integration with DALI, Zigbee, and Bluetooth systems
• Flexible Rotation & Compact Design - 90° vertical and 355° horizontal tilt with magnetic mounting
• Anti-Glare Performance (UGR<19) - Low unified glare rating ensures comfortable viewing
Technical Advantages
Cold Forging Integrated Radiator Design
A radiator made of 1070# pure aluminum molded by pressure. High thermal conductivity (226W/m.K), low-temperature differences, low light failure, and long service life.
360° Manual Rotation Design
Loosen the manual screw and turn the lens to achieve 360° spot rotation adjustment. Designed to solve the 360° rotation of projection and light spot.
High-Definition Optical Lens Design
Formed by multiple high-definition coated optical lenses. Features high luminous efficiency, high spot uniformity, minor distortion, extensive linear zoom range, and good spot cut-off line. Specially designed for COB light sources.
Optical-Grade Variable Aperture Design
An optical diaphragm made of high-precision special material with no blurring and freezing. Manual insertion and removal of the light cutting device can freely change the shape of the spot.
Multi-Layer Dry Damping Design
A focusing device not requiring lubricating oil with silky feel. Stable, reliable, wear-resistant, resistant to high temperatures, and doesn't wear off after extended use. Rotating the device changes spot sharpness.
Linear Zoom Enhancement
Short stroke, considerable focal length, high short-focus and long-focus recognition. Linear zoom is enhanced and more convenient. Rotate the device to adjust spot size.
Product Parameters
Application Scenarios
• Museum & Art Gallery Lighting - Perfect for highlighting artwork with precise, high-CRI illumination
• Retail & Luxury Displays - Ideal for accent lighting in boutiques with sharp, adjustable beams
• Hotel & Restaurant Ambiance - Enhances interior design with warm-to-neutral white tuning
• Architectural & Event Lighting - Used for dynamic gobo projections and framing architectural features
• Home Decorative Lighting - Adds high-end touch to residential spaces for wall-washing and artwork illumination
• Machine Vision & Studio Lighting - Delivers distortion-free, uniform light for precision applications
